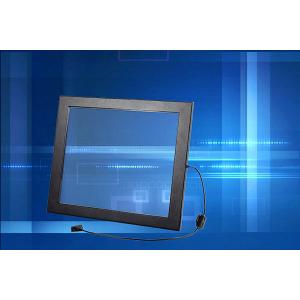

100mA, 27 Inch Finger or Touch Pen Infrared Touch Panel, Windows XP,Windows NT, Linux, Mac
| No. | Size | Item NO. | Outline Dimension (mm) OD | Viewing Area(mm) VA | Action Area(mm) AA |
| 1 | 10”-350” | Customized size |
|
|
|
| 2 | 17” | IR-170001S | 380.00*312.00 | 342.00*274.00 | 340.00*272.00 |
| 3 | 18.5” | IR-185003S | 451.40*272.00 | 413.40*234.00 | 411.40*232.00 |
| 4 | 19” | IR-190001S | 418.00*343.00 | 380.00*315.00 | 378.00*313.00 |
| 5 | 19”Wide | IR-190002S | 450.20*297.00 | 412.00*259.00 | 410.20*257.00 |
| 6 | 20” | IR-200001S | 484.80*291.10 | 446.80*253.10 | 444.80*251.10 |
| 7 | 21.5” | IR-215001S | 518.60*310.10 | 480.60*272.10 | 478.60*270.10 |
| 8 | 22” | IR-220001S | 518.00*340.50 | 482.00*304.50 | 478.00*300.50 |
| 9 | 23.6” | IR-236001S | 563.30*335.20 | 527.30*299.20 | 523.30*295.20 |
| 10 | 24” | IR-240001S | 562.50*368.00 | 526.50*332.00 | 522.50*328.00 |
| 11 | 26” | IR-260001S | 592.00*386.00 | 556.00*350.00 | 552.00*346.00 |
|
|
| IR-Txx= ten-point touch | Customized size for 24”-350” ten-point touch | ||
| 12 | 31.5” | IR-T315001 | 741.00*436.00 | 703.00*398.00 | 698.00*393.00 |
| 13 | 42” | IR-T420001 | 974.00*567.00 | 936.00*529.00 | 931.00*524.00 |
| 14 | 46” | IR-T460001 | 1061.00*616.00 | 1023.00*578.00 | 1018.00*573.00 |
| 15 | 55” | IR-T550001 | 1148.00*665.00 | 1110.00*627.00 | 1105.00*622.00 |
| 16 | IR-T550002 | 1253.00*724.00 | 1215.00*686.00 | 1210.00*681.00 | |
| 17 | 60” | IR-T600001 | 1372.00*791.00 | 1334.00*753.00 | 1329.00*748.00 |
| 18 | 65” | IR-T650001 | 1472.00*847.00 | 1434.00*809.00 | 1429.00*804.00 |
| 19 | 70” | IR-T700001 | 1592.50*914.50 | 1554.50*876.50 | 1549.50*871.50 |
| № | Item | Specification |
| 1 | Item NO. | DPT-IR-2700 |
| 2 | Detection method | Infrared |
| 3 | Size | 27" |
| 4 | Aspect ratio | 4:3 |
| 5 | Resolution | 4096(W)*4096(D) |
| 6 | Input method | Finger or touch pen |
| 7 | Touch action force | Not Minimum activation force |
| 8 | Position accuracy | 2mm |
| 9 | Operating Voltage | DC≤10V |
| 10 | Operating current | 100mA |
| 11 | Operating temperature | -10°C~50°C |
| 12 | Storage temperature | -30°C~60°C |
| 13 | Humidity | Operating:20%~85%;Storage:0%~95% |
| 14 | Relative humidity | 40°C,90%RH |
| 15 | Response time | <10ms |
| 16 | Transparency | 92%~100% |
| 17 | Surface hardness | ≥5H |
| 18 | Material | Pure glass |
| 19 | Thickness | 3mm |
| 20 | Light transmission | 92%~100% |
| 21 | Durability | Scratch-free; More than 50,000,000 touches in one location without failure |
| 22 | Drivers available | Windows 2000,Windows XP,Windows NT,Linux,Mac |
| 23 | Certificates | CE, FCC, RoHS |
| 24 | Working environment | Under sunlight,indoor and outdoor |
| 25 | Pen hitting life | ≥10,000,000/point |
| 26 | Pen sliding Durability | ≥500,000times |
| 27 | Finger Touch life | ≥60,000,000times |
| 28 | Warranty | 1 year |
